STAGE ONE
|
| Sediment Filter, 5-Micron Polyspun Cartridge 2 1/2” dia. x 10″ |
|
STAGE TWO (optional)
|
| 10 Activated Carbon Block Filter 5 Micron 2 1/2” dia. x 10″ |
|
STAGE THREE
|
| Activated Carbon Block Filter 5 Micron 2 1/2” dia. x 10″ |
|
STAGE FOUR
|
| Reverse Osmosis Membrane 36 GPD TFC @ 65 PSI Pressure Differential |
|
STAGE FIVE
|
| Granular Activated Carbon Post-Filter In-Line, 2” dia. x 10” |
|
TANK
|
| 4.0 Gallon Plastic Tank (metal tank available) Pre-pressurized with Butyl Bladder (2.5 gal. water capacity when full) |
Specifications
Shipping Weight:
4-stage 25 lb.
5-stage 28 lb.
Dimension:
4-stage 14”W x 6”D x 18”H
5-stage 15.5”W x 6”D x 18”H
Tank: 11″ dia. x 15.5″H
Conditions of Use
Water Must be microbiologically safe
Temperature, 40 -100 degrees F
pH Range, 3 to 10
Feed pressure, 40 to 100 psig
Maximum TDS, 1500 PPM
Turbidity, less than 1.0 NTU
Optimized for City Water
Certified 4 & 5-Stage RO Systems
4-stage and 5-stage undersink Reverse Osmosis filter systems optimized to treat city water using the existing water pressure. These sturdy and reliable US made systems have been in the field for over 15 years and remove and average of 95% of dissolved contaminants from water. VERTEX PureWaterMachines fit under most sinks and make clean, great tasting water at the point-of-use, eliminating the need for bottled water. An automatic shut-off valve conserves water by shutting the unit off when the storage tank is full.
The 5-stage system is designed to ensure water quality, membrane performance and filter life, where the incoming water contains a high amount of sediment as in some well water systems. An extra pre-filter stage is added before the membrane. This design can also be used to extend time between filter changes.
Comes complete and ready to install with dispensing faucet and instruction manual.
Download the 4-Stage system Brochure.
Download the 5-Stage system Brochure.
Features
• Auto shut-off valve (conserves water)
• Flow restrictor – modified capillary
• Long-reach, non-airgap chrome faucet included
• Threaded feed-water adapter with metal ballvalve
• Drain connection included
• 1/4 inch flexible polyethylene tubing
• JACO compression fittings
• 2 year limited warranty
| Ordering Information | Part No. | |
|---|---|---|

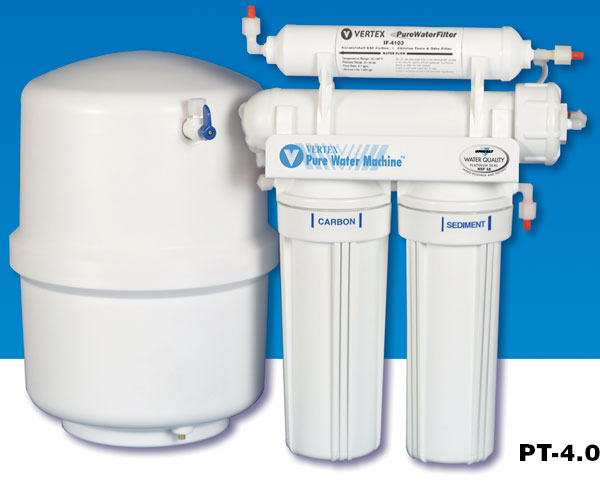

| 4-stage Certified 36 GPD RO System | PT-4.0 | |
| 5-stage Certified 36 GPD RO System | PT-4.0/5 | |
| Available Options | ||
| with UV Sterilizer add /UV | add /UV | |
| with Air Gap Faucet (meets many city's requirements) | add /AG | |
| with Metal Tank | add /MT | |
| with Quick-Connect fittings (includes 3/8" line from tank to faucet) | add /QC | |
| with 3/8" Feed Water Adapter | add /3/8FWA | |
| with 1/2"-3/8" John Guest Convertible Feed Water Adapter | call factory | |
| ProTekk Water Tray and Leak Detector | add LDDT-1218 | |
| Replacement Filters | ||
| 5 micron Sediment cartridge, 2.5" x 10" | SF-4001 | |
| Carbon Block cartridge, 2.5" x 10" (2x 5-stage) | CF-4060 | |
| GAC inline post filter, 2" x 10" | IF-4103 | |
| 36 GPD Replacement RO Membrane | MF-4009 | |
| Certified 4-stage Filter Replacement Kit | FK-100 | |
| Certified 5-stage Filter Replacement Kit | FK-101 | |
