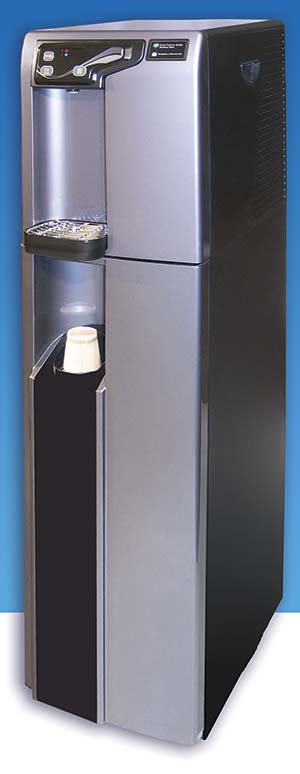

Vertex PureChill-9500 PureWaterCooler

Specifications
Shipping Weight: 60 lb.
Dimension: 13”W x 16”D x 42.5”H
Cooling Rate: 2.8 gal/hr 37-50ºF
Hot tank volume .5 gal
Heating Rate: 1.3 gal/hr 180 ºF
Voltage: 115 VAC
Power Required: 600w max

Filter System
Standard Filter 9500F
Stage 1: 5 micron Sediment
Stage 2: 10 micron Activated Carbon

Reverse Osmosis Filter 9500R
Above 2 stages plus
Stage 3: 100-GPD RO Membrane

Fully assembled
– connection hardware included

Vertex PureChill-9501

(replaces PWC-9500)

3-Temperature Cooler with Capacitve Touch Dispensing

Cold, hot and room temperature water dispenser for offices up to 50 people. The closed, pressurized dispense system keeps environmental contaminants out, so there is no need for costly in-tank sanitization. Water is chilled on demand when it passes through the cooling chamber to the faucet. The extra cabinet space below can house a 100 GPD RO system or be used for storage. Reliable capacitive touch control panel dispenses water safely to your cup

Available with Touchless dispense system that uses a proximity sensor that operates the cooler and provides touchless and totally hygienic operation to prevent the spread of pathogens in the workplace. Click here for more information.

• PureChill™ Technology eliminates need for UV and Ozone in tank sanitizers
• Capacitve touch dispense button for ease and durability
• Integrated Filter Monitor ensures freshly filtered water
• ProTekk™ Auto Safety-Shut-Off Valve provides peace of mind
• Cold: 37-50º F, Adjustable • Hot: 180º F, Autocontrol
• LED indicator for Hot and Cold water on the front panel
• Tall 10″ fill opening allows larger cups, mugs or reusable bottles
• Easy to clean control panel
• Individual on/off control switches for cold and hot water on rear panel
• Built-in filtration system is easily accessed for replacement
• Available with RO system or Standard Dual-Cartridge filtration system
• RO system comes with 2.5 gallon presurized water storage tank
• Attractive LED lighted dispense area
• Award winning design
• 1 year limited warranty – 3 year compressor warranty

Download the Brochure.



Ordering InformationPart No.
3-Temp Model - 100 GPD Reverse OsmosisPWC-9501R*
3-Temp Model – Standard FiltrationPWC-9501F
3-Temp Model – No FiltrationPWC-9501
3-Temp Model – No FiltrationPWC-9501HF
Replacement FiltersSedimentTF-4113
CarbonTF-4115
RO Membrane, 100 GPDMA-4205
*Includes 2.5 gallon bladder tank for pressurized water storage

For Sales, Service or Parts, contact

vertex-logo-blue

800-627-2146

purechill_filter_monitor

Integrated Filter Monitor

purechill_cooling

PureChill Cooling Technology

purechill_protekk

PreTekk Aut-Safety Shut-off valve

etl-logo-07
Conforms to UL std 399

ADA Compliant

Simply the Best – Inside and Out. New closed system keeps environmental contaminants out, so there is no need for costly in-tank sanitization. Water is chilled on demand when it passes through the cooling chamber to the faucet.
