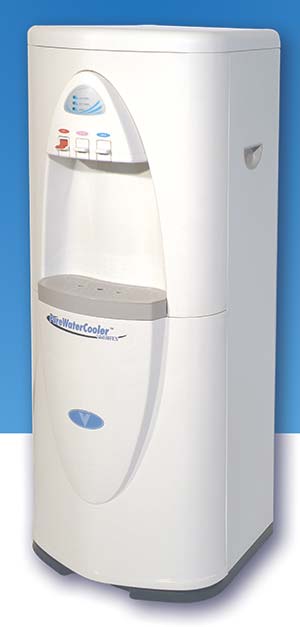

Vertex PWC-3500 PureWaterMachine

Specifications
Weight: 66 lb.
Dimension: 16”W x 16”D x 42”H
Cold tank volume 1 gal
Hot tank volume .8 gal
Room Temp tank volume 2.2 gal
Cooling Rate 1.5 gal/hr 37-50ºF
Heating Rate: 1.5 gal/hr 180 ºF
Voltage: 115 VAC
Power Required: 600w max


Standard Filter 3500F
Stage 1: 5 micron Sediment
Stage 2: 10 micron Activated Carbon

Reverse Osmosis Filter 3500R
Above 2 stages plus

Stage 3: 75-GPD RO Membrane
Stage 4: GAC polishing filter

Fully assembled
– connection hardware included

Vertex PWC-3500

High Capacity 3-Temp Water Dispenser

Deluxe 3-temperature, hot, room and cold bottle-less water cooler with large 4-gallon water storage capacity for offices or factories of up to 60 people. Improved features include a taller spigot height for easier access, a larger dispensing area for large sports bottles and a new flat top for placing coffee brewers or storing cups and utensils.

    Hot, Room and Cold Temperatures from a single source
    High Capacity 75 GPD RO membrane with 4.0 gallon total storage
    Taller spigot height and larger opening for easy refills
    Flat top supports coffee brewers or breakroom supplies
    Automatic heating control at 180 °F with over-temperature shut-off
    Sealed compressor cooling with adjustable thermostat, 37-50°F
    Stainless steel hot and cold water tanks
    Mechanical float valve shut-off
    Type 304 stainless steel hot and cold water tanks
    Built-in filtration system is easily accessed for replacement
    Choose Reverse Osmosis or standard Dual-Cartridge filtration
    Safety lock for hot water faucet
    Enclosed no-drip faucets eliminate hand contact for better hygiene
    ABS front and top covers have a high impact appliance finish
    1 year limited warranty – 3 year compressor warranty



UV sterilizer and ozone sanitizer options available.

Download the Brochure.



Ordering InformationPart No.
3-Temp Model - 50 GPD Reverse OsmosisPWC-3500R
3-Temp Model – Standard FiltrationPWC-3500F
3-Temp Model – No FiltrationPWC-3500
Executive Gray Cabinetadd /EG
3-temp Model w/ UV Sterilizeradd /UV
3-temp Model w/ Ozone Sanitizeradd /OZ
3-temp Model w/ ProTekk Mechanical Leak Detectoradd /LDM
Replacement FiltersSedimentIFA-4035
GAC CarbonIFA-4034
Post FilterIFA-4064
RO Membrane, 75 GPDMA-4206
For Sales, Service or Parts, contact

vertex-logo-blue

800-627-2146

3500_eg_250
Executive Gray Cabinet

pwc-3500_dwgs

etl-logo-07

Conforms to UL std 399

ADA Compliant

Deluxe High Capacity 3-Temp Water Dispenser with large 4-gallon water storage capacity for offices or factories of up to 60 people. Improved features include a taller spigot height for easier access, a larger dispensing area for large sports bottles and a new flat top for placing coffee brewers or storing cups and utensils.
