STAGE ONE
Sediment Filter, 5-Micron Polyspun Cartridge
2 1/2” dia. x 10″
STAGE TWO (optional)
Activated Carbon Block Filter 5 Micron
2 1/2” dia. x 10″
STAGE THREE
Activated Carbon Block Filter 5 Micron
2 1/2” dia. x 10″

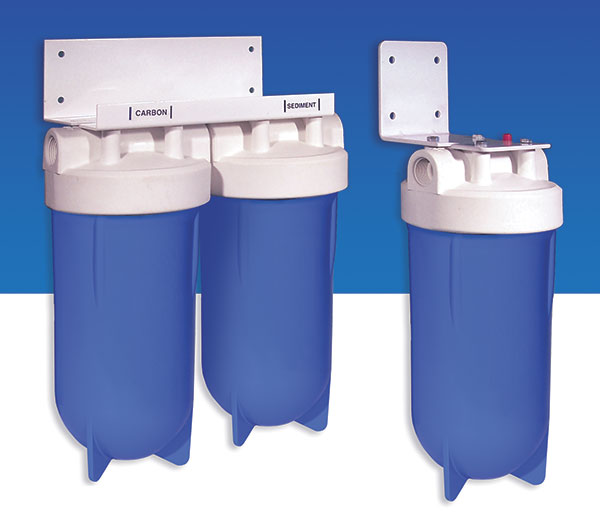

Point-of-Entry Filtration

Wall mounted systems with 1″ ports and built-in pressure relief valve

• Heavy-duty filters remove suspended material from all water entering homes
• Protects water heater, faucets and fixtures from damage due to sand, grit, rust and pipe scale
• Little or no pressure loss
• No discharge or wasted water
• 1 year limited warranty



Ordering InformationPart No.
Big 10 - sediment removalSF-10BB
Twin 10 - sediment, chlorine taste & odor removalDF-10BB
Big Blue 20 - sediment removalSF-20BB
Twin Blue 20 - sediment, chlorine taste & odor removalDF-20BB
Replacement Filters
5 micron sediment cartridge, 4.5" x 10"
for SF-10BB & DF-10BB
SF-4041
GAC Carbon cartridge, 4.5" x 10"
for DF-10BB
CF-4076
Carbon Block cartridge, 4.5" x 10"
for DF-10BB
CF-4027
5 micron sediment cartridge, 4.5" x 20"
for SF-20BB & DF-20BB
SF-4042
GAC Carbon cartridge, 4.5" x 20"
for DF-20BB
CF-4077
Carbon Block cartridge, 4.5" x 20"
for DF-20BB
CF-4017
Housing Removal WrenchFW-1209

Specifications
Shipping Weight:
Big 10 11 lb.
Twin 10 22 lb.
Big Blue 16.5 lb.
Twin Blue 33 lb.
Dimension:
Big 10 7.5”W x 8”D x 18.5”H
Twin 10 17”W x 8”D x 17.5”H
Big Blue 7.5”W x 8”D x 28”H
Twin Blue 17”W x 8”D x 28”H
Tank: 11″ dia. x 15.5″H

Conditions of Use
Water Must be microbiologically safe
Temperature, 40 -100 degrees F
pH Range, 3 to 10
Feed pressure, 40 to 100 psig
Maximum TDS, 1500 PPM
Turbidity, less than 1.0 NTU
