Low Cost Hot & Cold Water Dispenser serves up to 40 people in offices where economy and quality are needed. Eliminates the hassle of lifting and storing heavy 5 gallon containers.

1000_250

Specifications
Weight: 58 lb.
Dimension: 13”W x 15”D x 38”H
Cold tank volume 1 gal
Hot tank volume .5 gal
Cooling Rate: 1.5 gal/hr 37-50ºF
Heating Rate: 1.3 gal/hr 180 ºF
Voltage: 115 VAC
Power Required: 600w max

1000_fltr_instlFilter System
Standard Filter 1000F
Stage 1: 5 micron Sediment
Stage 2: 10 micron Activated Carbon

Reverse Osmosis Filter 1000R
Above 2 stages plus
Stage 3: 50-GPD ROMembrane

Fully assembled – connection hardware included

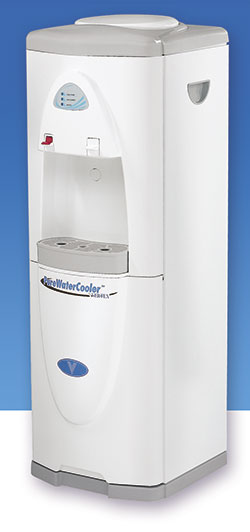

Vertex PWC-1000

Low Cost Hot & Cold Water Dispenser

A compact hot and cold water dispenser serves up to 40 people in offices where economy and quality are needed. Eliminates the hassle of lifting and storing heavy 5 gallon containers.

•    Two temperature system
     • Cold: 37-50º F, Adjustable • Hot: 180º F, Autocontrol
     • LED indicator for Hot and Cold water on the front panel
•    Individual on/off control switches for cold or hot water on rear panel
•    Completely sealed stainless steel cold reservoir and hot tank
•    Convenient, enclosed, no-drip dispensing faucets
•    Safety lock for hot water faucet
•    Built-in filtration system is easily accessed for replacement
•    Choose Reverse Osmosis or standard Dual-Cartridge filtration
•    Enclosed no-drip faucets eliminate hand contact for better hygiene
•    Steel subframe and side panels withstand years of use
•    ABS front and top covers have a high impact appliance finish
•    1 year limited warranty – 3 year compressor warranty



UV sterilizer and ozone sanitizer options available.

Download the Brochure.



Ordering InformationPart No.
2-Temp Model - 50 GPD Reverse OsmosisPWC-1000R
2-Temp Model – Standard FiltrationPWC-1000F
2-Temp Model – No FiltrationPWC-1000
Executive Gray Cabinetadd /EG
2-temp Model w/ UV Sterilizeradd /UV
2-temp Model w/ Ozone Sanitizeradd /OZ
2-temp Model w/ ProTekk Mechanical Leak Detectoradd /LDM
Replacement FiltersSedimentIFA-4035
GAC CarbonIFA-4034
RO Membrane, 50 GPDMA-4203
For Sales, Service or Parts, contact

vertex-logo-blue


800-627-2146


1000_eg_250

Executive Gray Cabinet

pwc-1000_dwg

etl-logo-07
Conforms to UL std 399

ADA Compliant
