hww_cmcl_600



Uses
• Gas-fired and electric boilers
• Cooling towers
• Commercial Ice-makers
• Decorative Fountains
• Evaporative Coolers
• Commercial Laundries
• Hotels and Motels
• Crop Irrigation Water
• Plastic Injection Molding
• Hydroponics

Benefits
• Reduces scale-saves 5% or more fuel
• Eliminates scale-control chemicals
• Reduces fouling of dishwasher jets
• Reduces downtime for de-scaling
• Reduces soap and detergent use
• Economical to install and operate
• Eliminates scale buildup on electric heating elements
• Reduces calcium spotting and soap usage in bottle cleaning

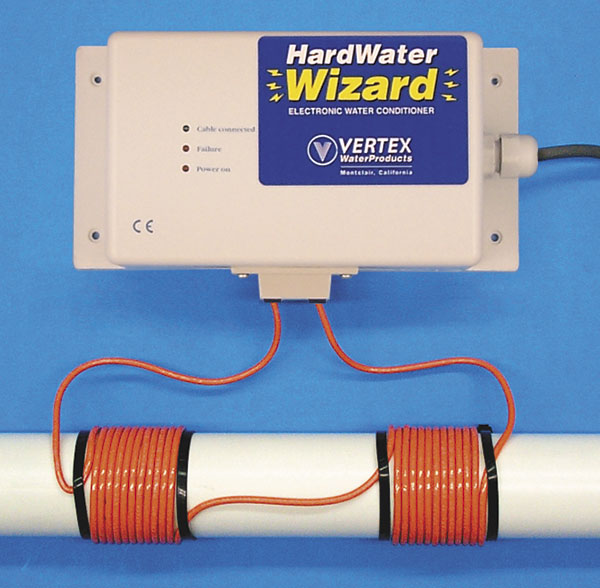

The HardWaterWizard™

Commercial Electronic Water Conditioner

The VERTEX HardWaterWizard is an electronic alternative to ion-exchange water softeners that will prevent mineral deposits and remove existing scale. When installed on the inlet water pipe, its continuously oscillating electric field changes the property of the hardness minerals so they stay in solution and don’t deposit on pipes and fixtures. These models are designed for larger pipe sizes, higher flow rates and higher concentration of hardness found in commercial applications. It works on galvanized steel, copper, and pvc pipes.

This technology has been studied numerous times, most recently at the University of Arizona in 2011, using the DVGW-w512 protocol. These studies produced similar results – 50% scale reduction on average confirming our own results at Vertex. In addition there is a reduction in PH of 0.1 to 0.3 in the treated water which leads to the elimination of existing scale.

Download the Brochure.

Ordering InformationPart No.
Up to 2" pipe Membrane CW-2
Up to 4" pipe Membrane CW-4

Specifications
Enclosure: ABS plastic Size: 6.5” x 4” x 2.5”
Shipping weight: 3.5 lbs.
Coil voltage: 12 VDC
Power usage: less than 20 watts max
Operating temperature: -20º to 140ºF
Inlet voltage:110-240 volts, 60Hz
Signal Cable temp.: 196ºF max, 600 volts
Signal “on” light and operating light.
Red power on light indicates power is present,
Green indicates coil connected and signal generated,
Red fail light should be off.

Comes complete with electronic module, signal
cable, cable ties, power converter, connection
hardware and instruction manual.
